产品名称：K-9208(V22) 电池激活、充电治具（智充版）
支持苹果手机5G、5S、6G、SE/6P/6S/6SP、7G/7P、8G/8P/X/ＸＳ／XR/ＸＳ ＭＡＸ、11/11PRO/11PRO MAX、12/12Mini、12pro、12promax、13/13Mini、13pro、13promax及支持三星和国产品牌小米、华为、努比亚、CY、VIVO 、OPPO等
Support iPhone 5G, 5S, 6G, SE/6P/6S/6SP, 7G/7P, 8G/8P/X/XS/XR/XS MAX, 11/11PRO/11PRO MAX, 12/12Mini, 12pro, 12promax, 13 /13Mini, 13pro, 13promax and support Samsung and domestic brands Xiaomi, Huawei, Nubia, CY, VIVO, OPPO, etc.
Barcode (EAN)
Chinese
English
Picture materiali
Video material
User'sManual
1.采用高品质智能芯片，实现快速充电；
2.具有休眠唤醒功能，按下激活键即可激活休眠中的电池，电池能够再次正常使用;
3.支持其他充电设备，避免长期占用电源表影响维修作业;
4.智能自动识别电池正负极，正负极接反不烧机，直接扣上即可使用
5.智能充电模式，符合锂电池充电过程；
6.全程智充，无需人工值守，充满立即停止充电，不必担心过充造成危险发生；
7.电池充满自动转灯 ，绿灯亮为真正充电，充满自动灭灯；
8.智能识别短路的电池，一旦短路，红色指示灯亮起同时断电；
9.本治具需要输入电压大于电池当前电压时才能正常工作，最大充电电流为2A;
10.设计先进、安全、充电速度快、电池电量可以充到100%、具有精确的短路判断能力为你筛选各种不良电池 大大节省您的宝贵时间。
1. Using high-quality smart chips to achieve fast charging;
2. With sleep wake-up function, press the activation button to activate the dormant battery, and the battery can be used normally again;
3. Support other charging equipment to avoid long-term occupation of the power meter and affect maintenance operations;
4. Intelligent and automatic identification of the positive and negative poles of the battery, the positive and negative poles are reversed without burning the machine, and you can use it directly by buttoning it
5. Intelligent charging mode, in line with the lithium battery charging process;
6. The whole process of intelligent charging, without manual duty, stops charging immediately when fully charged, and there is no need to worry about danger caused by overcharging;
7. When the battery is fully charged, it will automatically turn the light, the green light is on for real charging, and the light will automatically turn off when it is fully charged;
8. Intelligently identify short-circuited batteries, once short-circuited, the red indicator light will light up and power off at the same time;

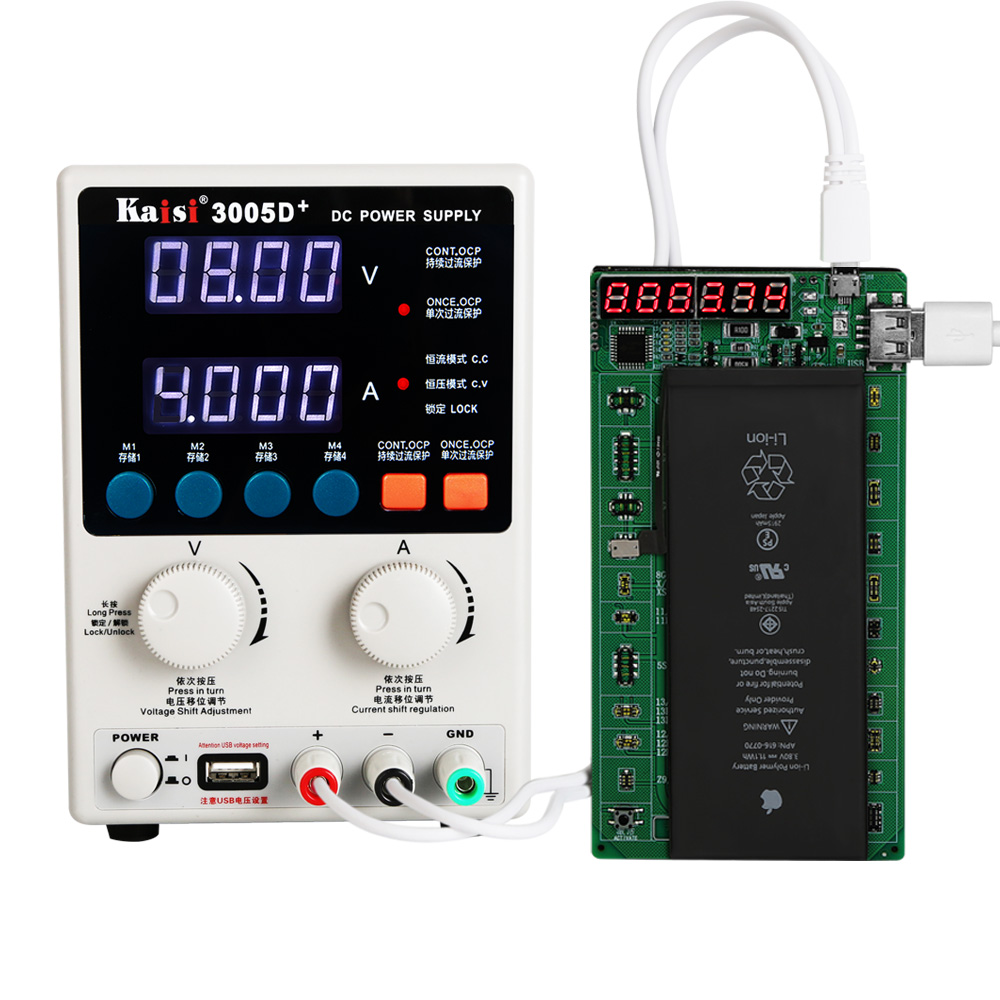

9. The fixture needs the input voltage greater than the current voltage of the battery to work normally, and the maximum charging current is 2A;
10. Advanced design, safe, fast charging speed, the battery power can be charged to 100%, with accurate short-circuit judgment ability to screen all kinds of bad batteries for you, which greatly saves your precious time.
