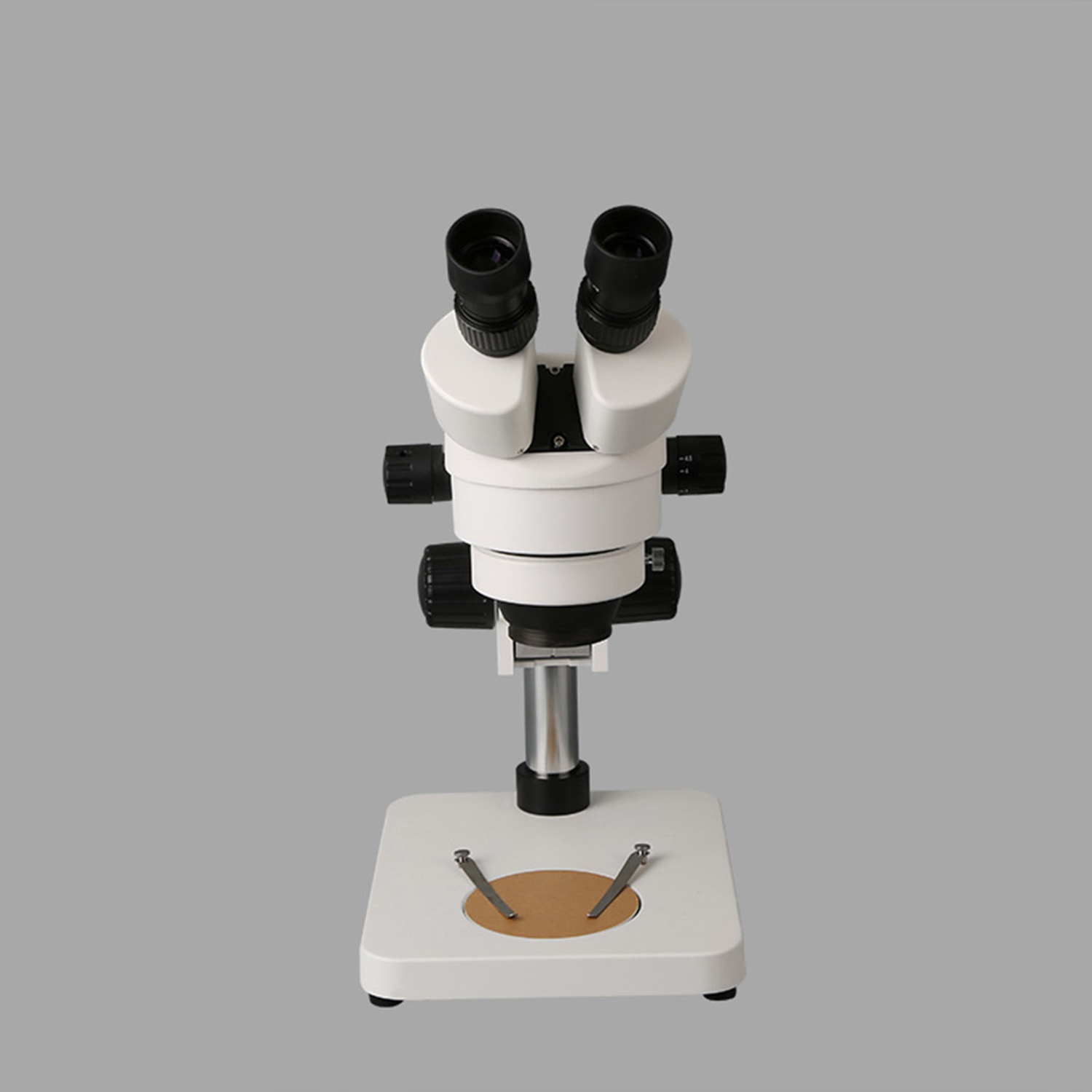

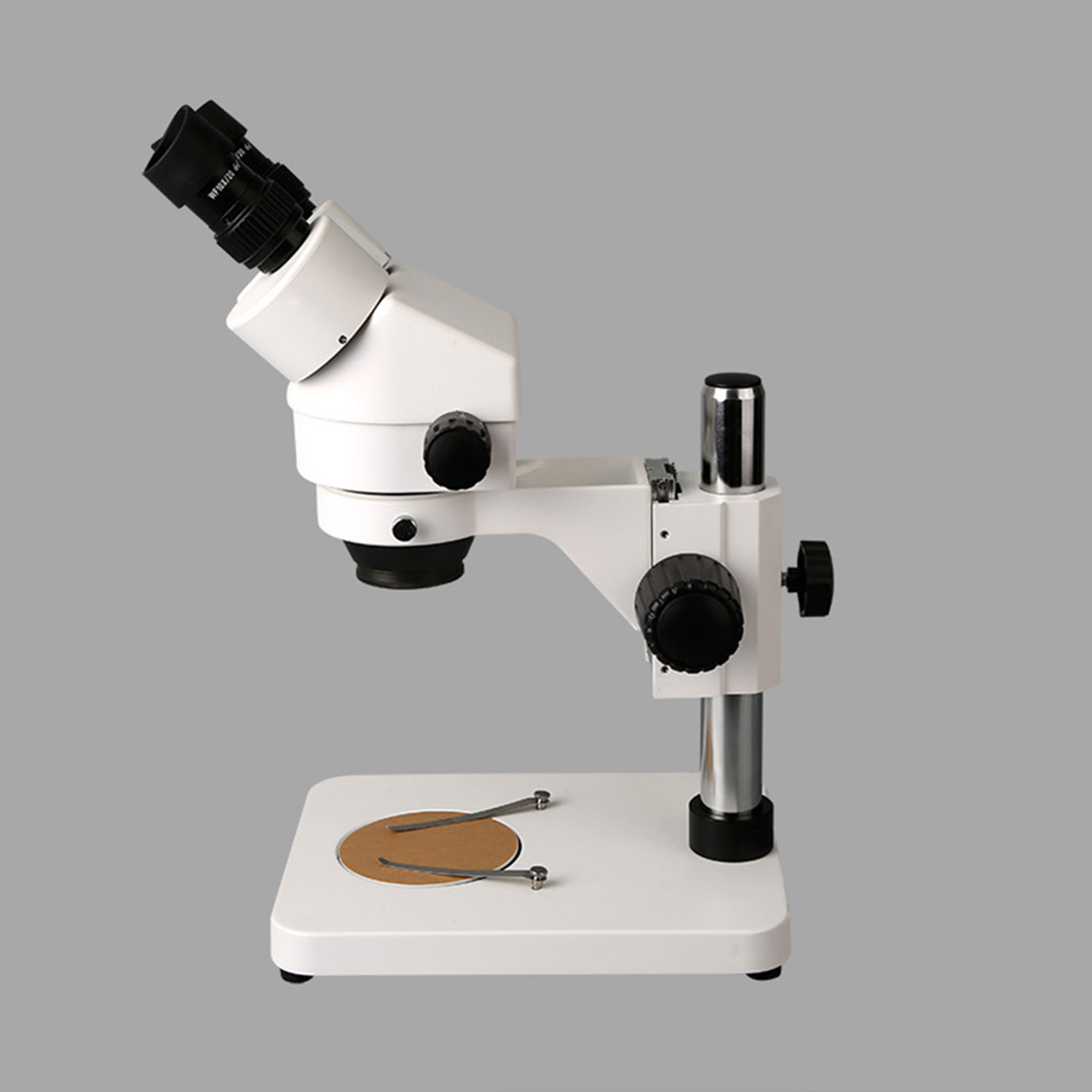

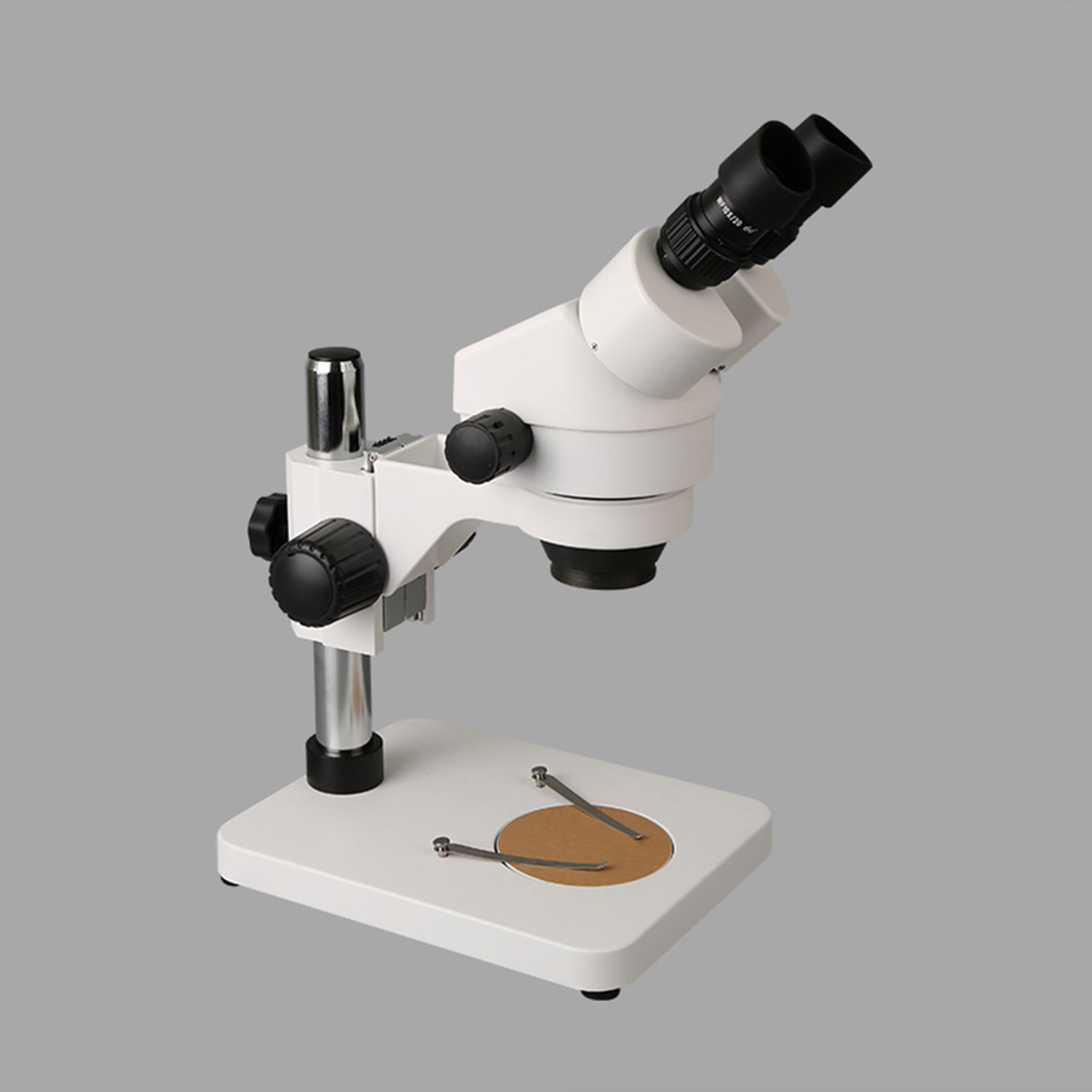

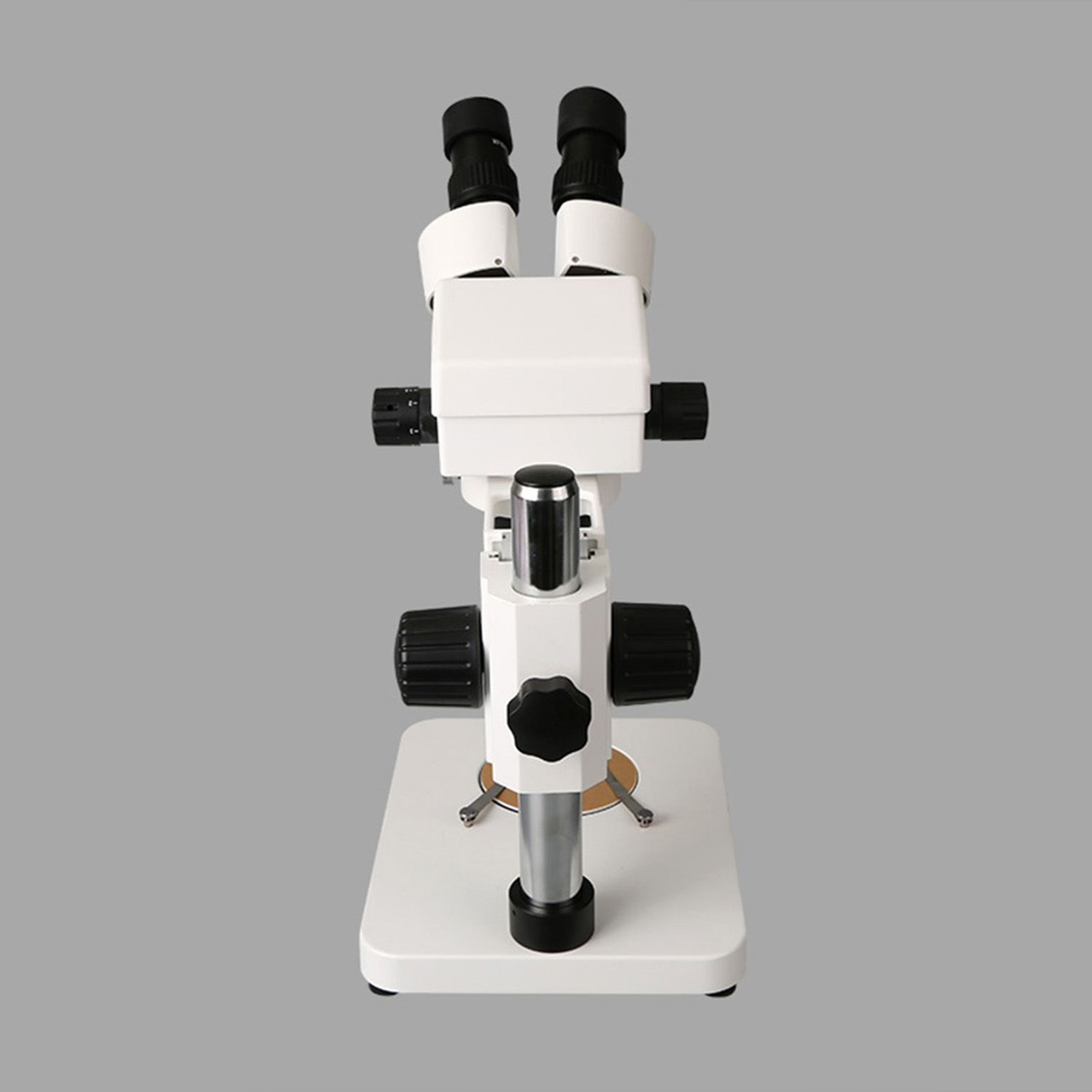

    产品名称：KS-7045 显微镜

    显微镜专为要求工作距离长，观察视域大的用户设计而成。成像清晰，外形美观，可供仪器、仪表、电子工业作细小精密零件的检验、装配、修理之用

    Barcode (EAN)
    6922297056826



    Chinese English Picture materiali Video material User'sManual
    观察头倾角:45°
    镜筒:双目
    目镜:WF10*20mm高眼点目镜
    物镜:0.70X~4.5X的连接变倍物镜
    放大倍率:7X-45X,
    瞳距调节:范围54-75mm
    视距调节:双视度均可调节 调节范围为±5屈光度
    工作距离:100mm

    Observation head tilt angle: 45°
    Lens barrel: binocular
    Eyepiece: WF10*20mm high eye point eyepiece
    Objective lens: 0.70X~4.5X connecting zoom objective lens
    Magnification: 7X-45X,
    Interpupillary distance adjustment: range 54-75mm
    Sight distance adjustment: Both dioptrics can be adjusted, the adjustment range is ±5 diopters
    Working distance: 100mm

    7045双目显微镜说明书.pdf

    7045 Binocular Microscope Instruction Manual.pdf
